Source: Würth Elektronik

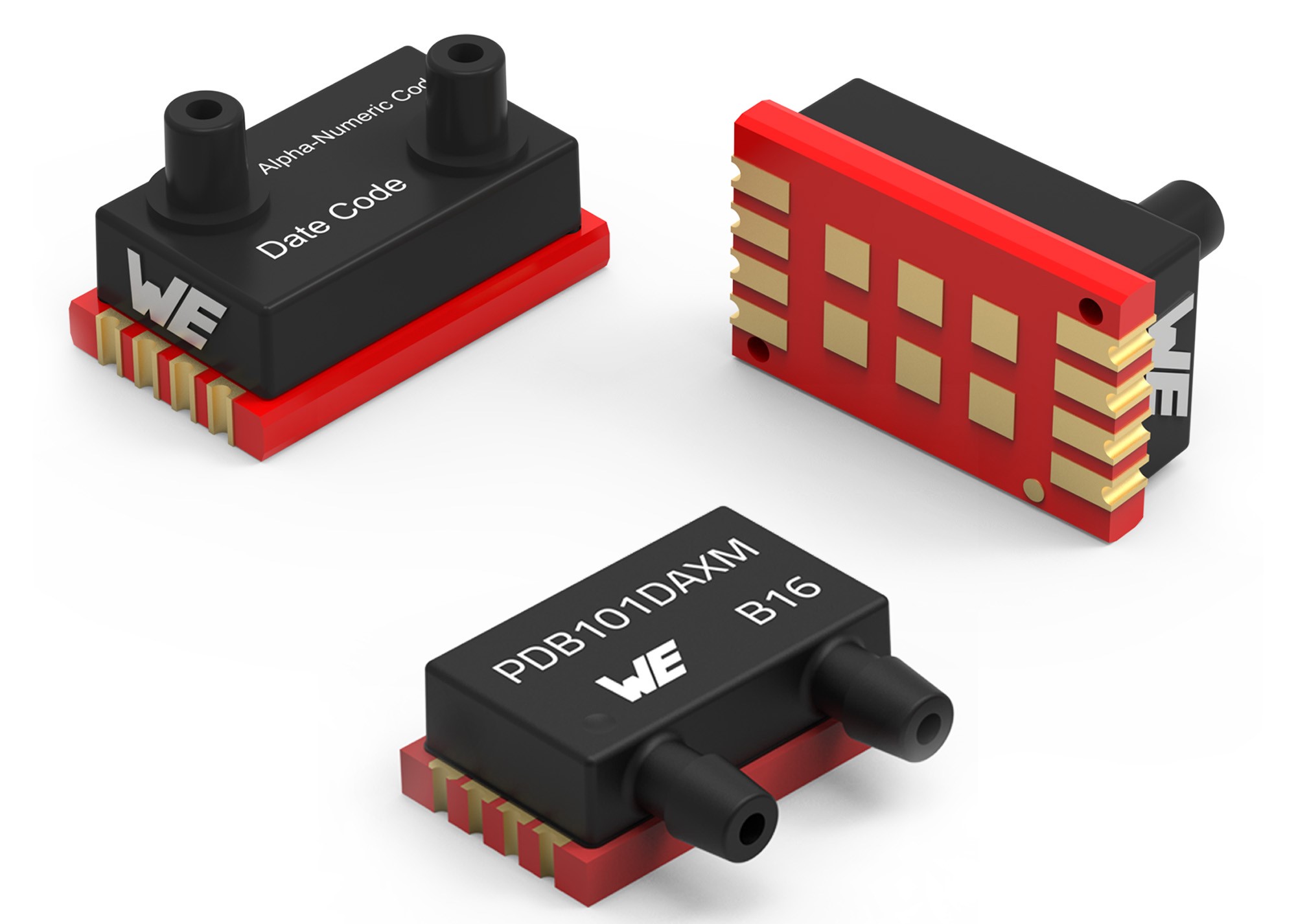

The WSEN-PDMS from Würth Elektronik is a differential pressure sensor with ±1 mbar accuracy and 16-bit resolution, supporting 3.0 V to 5.5 V operation with I²C, SPI and analog interfaces. The sensor provides calibrated pressure data with optional temperature output, operates from −25°C to +85°C and includes CRC support for reliable communication. Available with multiple nozzle configurations, it is designed for HVAC, industrial automation, gas detection and medical devices such as inhalation systems.
