Hall-effect sensors made simple

November 5, 2025 By Rakesh Kumar Leave a Comment

A Hall-effect sensor is a transducer that converts a magnetic field directly into a usable electrical voltage. It enables engineers to perform non-contact measurement of shaft rotation, detect the proximity of a lid, or monitor the current in a high-power motor drive.

From a system-level perspective, a Hall-effect sensor is a complete transducer that bridges the mechanical and electrical systems. It achieves this by transducing a magnetic field into a usable voltage. In many applications, this magnetic field is simply a proxy for the mechanical motion of a target magnet.

At its most basic, as shown in Figure 1, the system consists of three parts. First is the magnetic input, provided by a mechanical system, such as a permanent magnet. Second is the Hall element, the core solid-state transducer that converts the magnetic field into a minute voltage. Lastly, the Op amp serves as a representation of the integrated Analog Front-End (AFE).

Figure 1. A Hall-effect sensor integrating a core Hall element with an AFE to condition the signal from a magnetic input. (Image: Texas Instruments)

This AFE is essential, as the raw Hall voltage is in the microvolt or millivolt range and is plagued by noise and offset. The AFE provides amplification, filtering, and compensation, delivering analog or digital output. The elegance of this system lies in its inherent galvanic isolation and the absence of mechanical wear, resulting in improved reliability compared to mechanical switches or resistive potentiometers.

What is the core principle of a Hall-effect sensor?

To properly design with these sensors, engineers must first understand the underlying physics of the device. As illustrated in Figure 2, a constant bias current is forced to flow between two opposite contacts of the plate. In this state, with no magnetic field present, the potential is uniform between the two transverse sense contacts.

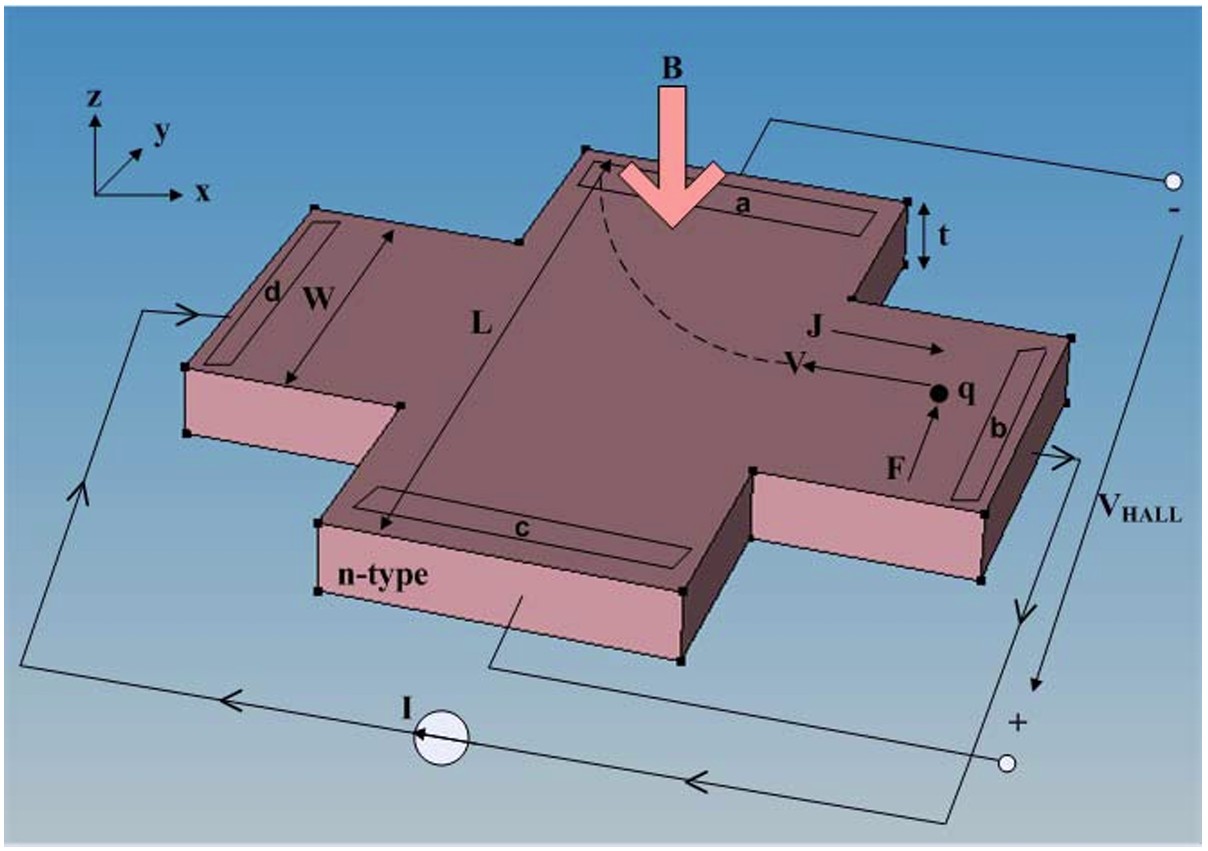

Figure 2. The fundamental Hall effect: a bias current and a perpendicular magnetic field creating a transverse Hall voltage due to the Lorentz force on charge carriers. (Image: MDPI)

However, when a perpendicular magnetic field is applied, the charge carriers (electrons) flowing in the plate experience the Lorentz force. This force deflects the carriers toward one side of the plate. This accumulation of charge creates a transverse electric field that opposes further deflection, establishing a stable potential difference. This potential is the Hall Voltage, and it is directly proportional to both the bias current and the strength of the perpendicular magnetic field. This proportionality is the foundation of all Hall-effect sensing.

A practical example of a Hall-effect sensor

A prime example of a Hall-effect sensor is an integrated current sensor, designed for high-power motor control and power conversion. Here, the magnetic field is generated not by an external magnet but by the very current the device intends to measure.

An exploded view of such a package, shown in Figure 3, reveals a highly sophisticated system:

Figure 3. An exploded view of a high-power current sensor, which uses a magnetic concentrator to focus the magnetic field from a leadform onto an isolated Hall IC. (Image: Allegro Microsystems)
  • Current-carrying leadform: A low-resistance conductor forms the primary current path. The large current flowing through it generates the magnetic field.
  • Magnetic concentrator: This is a ferromagnetic core that acts as a flux guide. It captures the magnetic field lines from the leadform and concentrates them directly onto the Hall element. It dramatically increases the current-to-field transduction gain and improves the signal-to-noise ratio.
  • Hall Element + IC: The optimized Hall plate and its complete AFE are integrated onto a single CMOS

The true value for an engineer is the inherent galvanic isolation. The low-voltage CMOS chip is physically separated from the high-power leadform, allowing it to safely and accurately measure hundreds of amps at high voltages.

Summary

The Hall-effect sensor is a versatile component that has evolved from a basic physical principle to an integrated system-on-a-chip. By combining the Hall elements with dedicated AFEs and specialized packaging, Hall-effect sensors provide isolated and reliable non-contact measurements important for many automotive, industrial, and power systems.

References

Improved Performance and Features of Allegro’s Next Generation, High Power
Density CB Package Current Sensors
, Allegro Microsystems
Hall Effect Sensors Design, Integration, and Behavior Analysis, MDPI
What is a Hall-effect Sensor?, Texas Instruments
